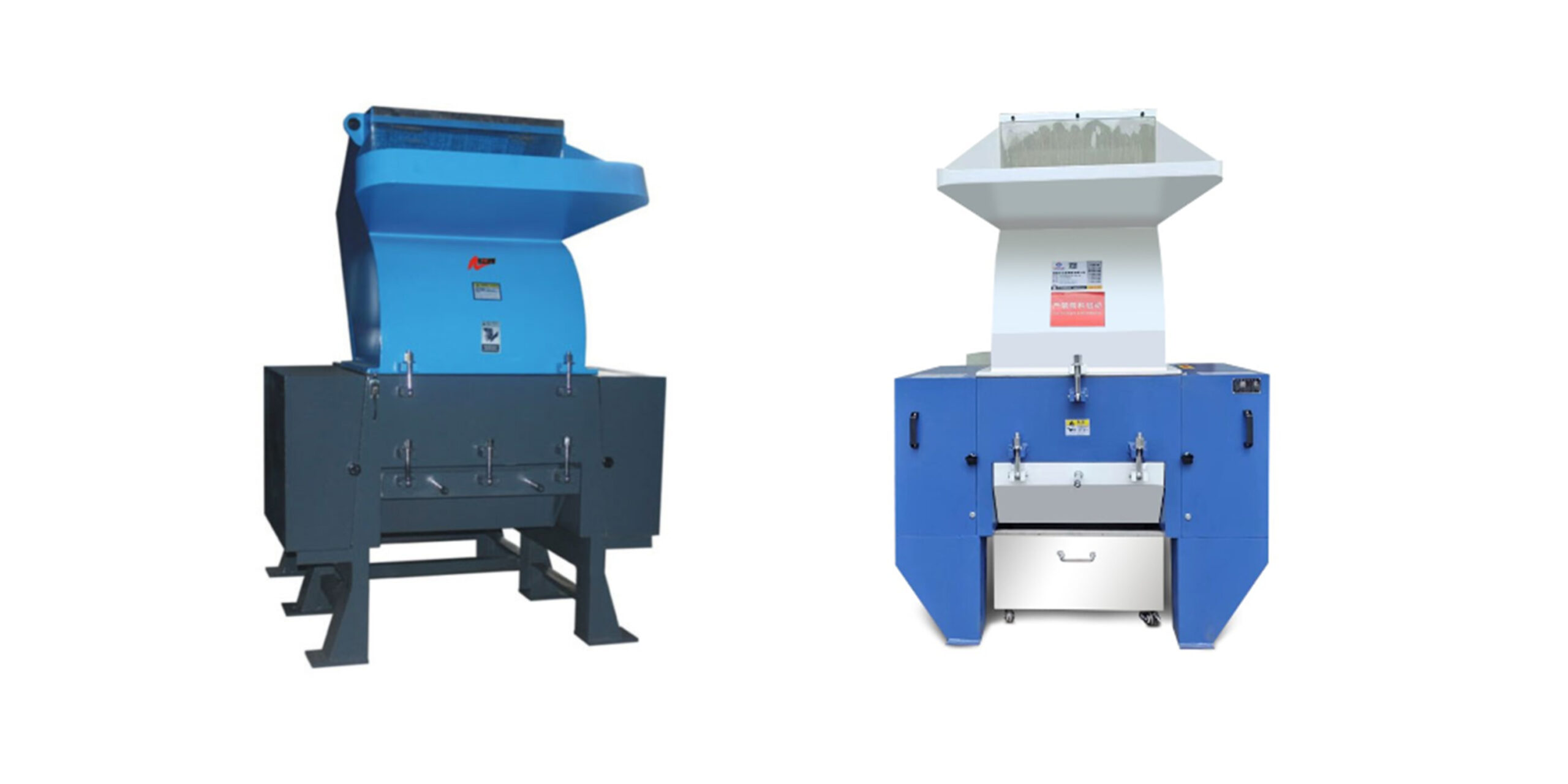

Blade plastic crusher
Features of blade plastic crusher;
1. All steel welded base, solid and durable.
2. Easy to disassemble design, easy to clean and maintain.
3. Imported steel tool, sharp blade, easy to replace, durable.
4. It is easy to smash all kinds of soft and hard plastics.
Description
Application of Blade plastic crusher
▲ A plastic crusher is indispensable equipment for crushing and recycling plastics in the sheet and film industry. It mainly crushes all kinds of soft and hard plastics, crushing block, ball, sheet, and strip plastics into granules for recycling, greatly improving the utilization rate of plastics.
▲ Discharge size: the crushed granular material can be determined according to the size of the screen mesh, and the standard screen mesh size is 8-10MM. The minimum non-standard screen aperture can be customized to be 4mm, and those above 4mm can be customized as required.
Main functions of blade plastic crusher:
▲ The structure of the plastic breaker blade type cutter is between a claw type cutter and a flat type cutter. It is called a universal blade-type crusher.
▲ Suitable for crushing plastic products such as ordinary nozzles, sheets, pipes, profiles, plates, and packaging materials.
▲ The knife type design is reasonable, the product granulation uniformity is high, and the speed is fast;
▲ The universal plastic crusher adopts a sealed bearing to keep the bearing rotating well for a long time;
▲ The cutter is heat shrinkable, and the appearance design is beautiful and generous.
▲ The whole machine is equipped with an electric control safety design. The hopper is of a double-layer structure and is filled with sound insulation materials. The motor is equipped with an overload protection device and a power supply interlocking protection system, making the equipment safe and environmentally friendly
Specifications
Model | 5E230P | 5E300P | 5E400P | 5E500P | 5E600P | 5E800P | |
crushing chamber
Crushing chamber |
(mm) | 230X200 | 310X200 | 410X2350 | 515X290 | 610X320 | 815X470 |
Crushing capacity
Crushing capacity |
(kg/h) | 100〜150 | 150〜200 | 200〜250 | 300〜350 | 350-450 | 450〜600 |
fixed Blade
number |
2 | 2 | 2 | 2 | 4 | 4 | |
rotary Blade
number |
6 | 9 | 12 | 15 | 18 | 24 | |
Power | Kw | 4 | 5.5 | 7.5 | 11 | 15 | 2230 |
HP | 5 | 7.5 | 10 | 15 | 20 | 3040 | |
Outine dimensions | (LXWXH
cm) |
94X60X109 | 115X72X122 | 116X84X131 | 143X101X155 | 150X111X173 | 215X149X222 |
