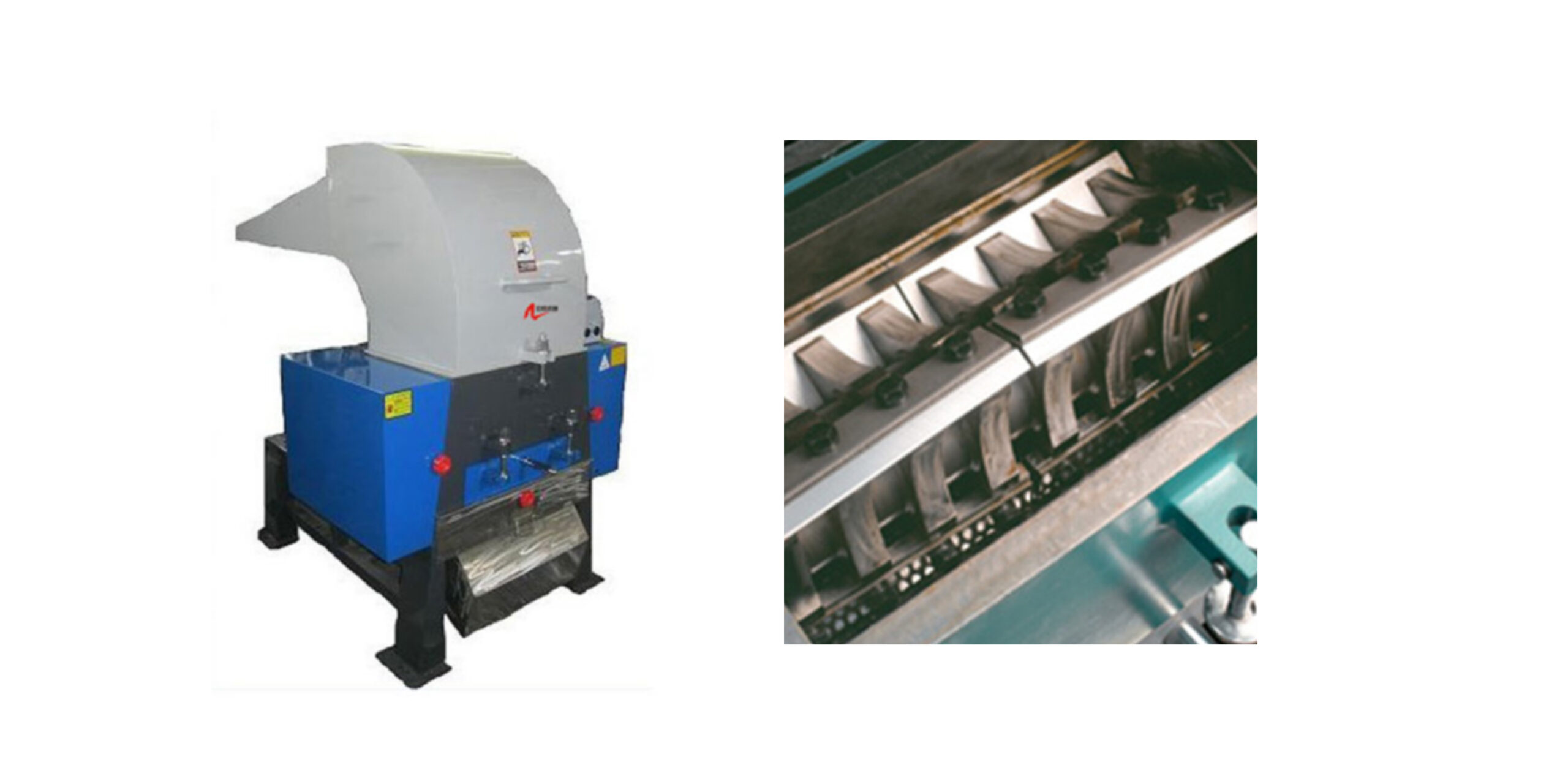

Film plastic crusher
Features of film plastic crusher:
1. All steel welded base, solid and durable.
2. Easy to disassemble design, easy to clean and maintain.
3. Imported alloy cutter, extremely sharp blade, easy to replace, durable.
4. It is easy to smash all kinds of soft and hard plastics.
Description
Application of film plastic crusher:
▲ A film crusher is an indispensable crushing and recycling equipment in plastic film, mainly used for various; Plastic film, polyester film, functional film, packaging film, film panels, PP, PE, PO film, etc. The lump, sheet, strip, and other films are crushed into granules of different sizes for recycling, which greatly improves the utilization rate of plastics.
▲ Discharge size: the crushed granular material can be determined according to the size of the screen mesh, and the standard screen mesh size is 8-10MM. The minimum non-standard screen aperture can be customized to be 4mm, and those above 4mm can be customized as required.
Main functions of film plastic crusher:
▲ 5E film crusher is suitable for recycling films and thin materials, such as PE, PP film materials, woven bags, fibers, etc.
▲ The scissors-type tool holder structure specially designed for the crushing of film materials is more conducive to improving the working rate. The film-crushing recovery system composed of an optional suction fan and a storage bucket can give full play to the recovery efficiency.
Specifications
Model | 5EPD380 | 5EPD500 | 5EPD800 | 5EPD815 | 5EPD960 | 5EPD1100 | |
Crushing chamber | (mm) | 380X240 | 504X320 | 815X470 | 815X520 | 960X610 | 1100X800 |
Crushing capacity | (kg/h) | 200-300 | 300-400 | 450-600 | 550-700 | 600-800 | 800-1000 |
Fixed blades | 2 | 2 | 4 | 4 | 4 | 4 | |
Rotary blades | 3 | 6 | 9 | 12 | 12 | 12 | |
Power | Kw | 7.5 | 15 | 22/30 | 37 | 37 | 75 |
HP | 10 | 20 | 30/40 | 50 | 50 | 100 | |
Outine dimensions | (L*W*H)cm | 122X84X129 | 162X107X177 | 215X149X223 | 243X166X250 | 210X176X283 | 252X205X345 |
Net weight | (kg) | 515 | 900 | 2000 | 2300 | 3000 | 6000 |
