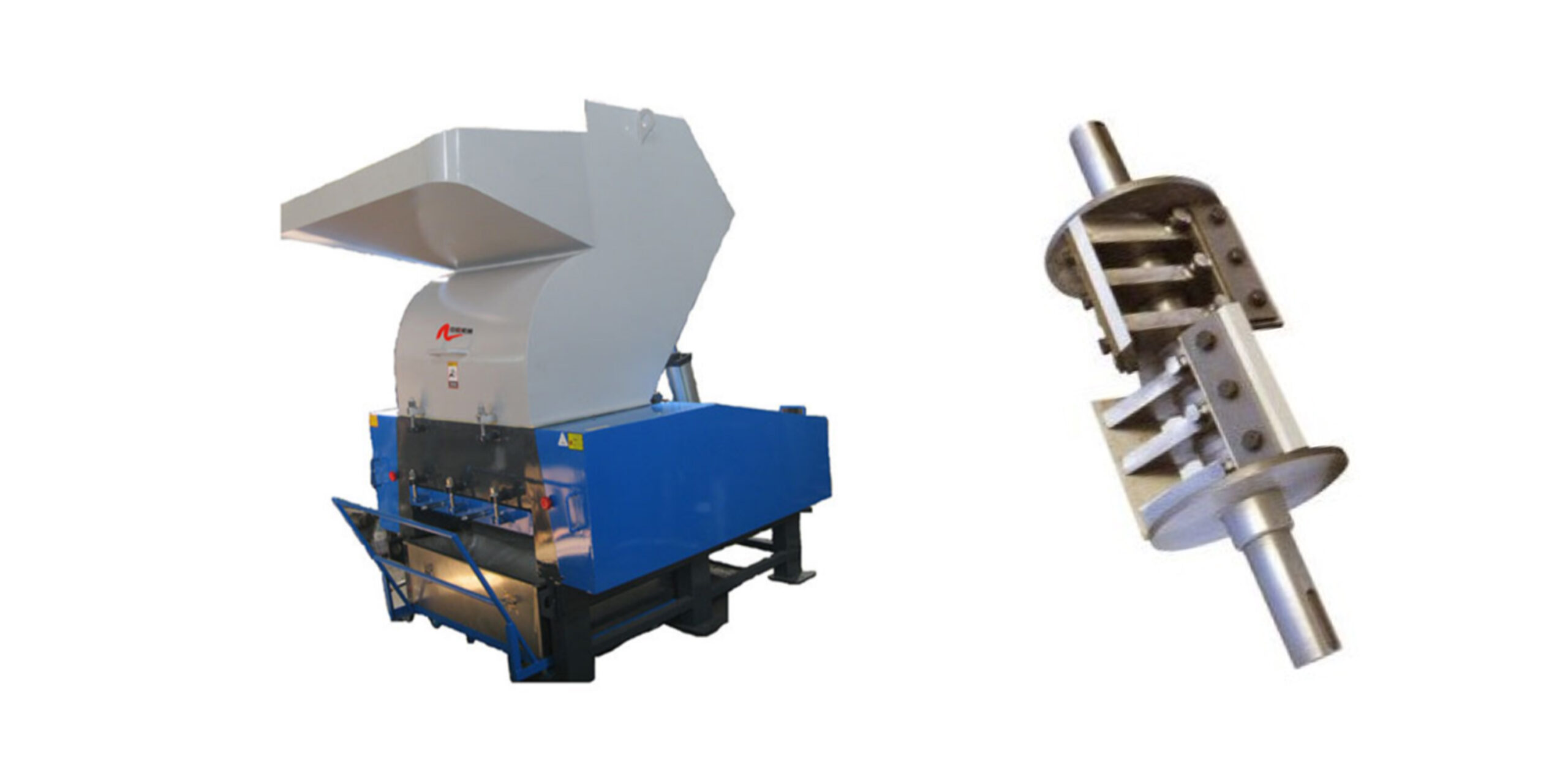

Flat knife plastic crusher
Features of flat knife plastic crusher:
1. All steel welded base, solid and durable.
2. Easy to disassemble design, easy to clean and maintain.
3. Imported steel tool, sharp blade, easy to replace, durable.
4. It is easy to smash all kinds of soft and hard plastics.
Description
Uses of flat knife plastic crusher:
▲ A plastic crusher is indispensable equipment for crushing and recycling plastics in the injection molding industry. It mainly crushes all kinds of soft and hard plastics, crushing blocky, spherical, sheet, and strip plastics into granules for recycling, which greatly improves the utilization rate of plastics.
▲ Discharge size: the crushed granular material can be determined according to the size of the screen mesh, and the standard screen mesh size is 8-10MM. The minimum non-standard screen aperture can be customized to be 4mm, and those above 4mm can be customized as required.
Main functions of flat knife plastic crusher:
▲ The wide flat knife structure of the plastic crusher is suitable for crushing products with large volumes, thin walls, and thin material to improve the crushing efficiency;
▲ It is applicable to the recycling of boxes, thin pipe fittings, blow molded parts, bottles, shells, and other plastics. Less dust and high uniformity;
▲ 5EPD series crushers are easy to operate, easy to change knives, and equipped with electric control safety design. The hopper is of a double-layer structure and is filled with sound insulation materials. The motor is equipped with an overload protection device and power chain protection system, making the equipment safe and environmentally friendly.
Specifications
Model | 5EPD380 | 5EPD500 | 5EPD800 | 5EPD815 | 5EPD960 | 5EPD1100 | |
Crushing chamber | (mm) | 380X240 | 504X320 | 815X470 | 815X520 | 960X610 | 1100X800 |
Crushing capacity | (kg/h) | 200-300 | 300-400 | 450-600 | 550-700 | 600-800 | 800-1000 |
Fixed blades | 2 | 2 | 4 | 4 | 4 | 4 | |
Rotary blades | 3 | 6 | 9 | 12 | 12 | 12 | |
Power | Kw | 7.5 | 15 | 22/30 | 37 | 37 | 75 |
HP | 10 | 20 | 30/40 | 50 | 50 | 100 | |
Outine dimensions | (L*W*H)cm | 122X84X129 | 162X107X177 | 215X149X223 | 243X166X250 | 210X176X283 | 252X205X345 |
Net weight | (kg) | 515 | 900 | 2000 | 2300 | 3000 | 6000 |
