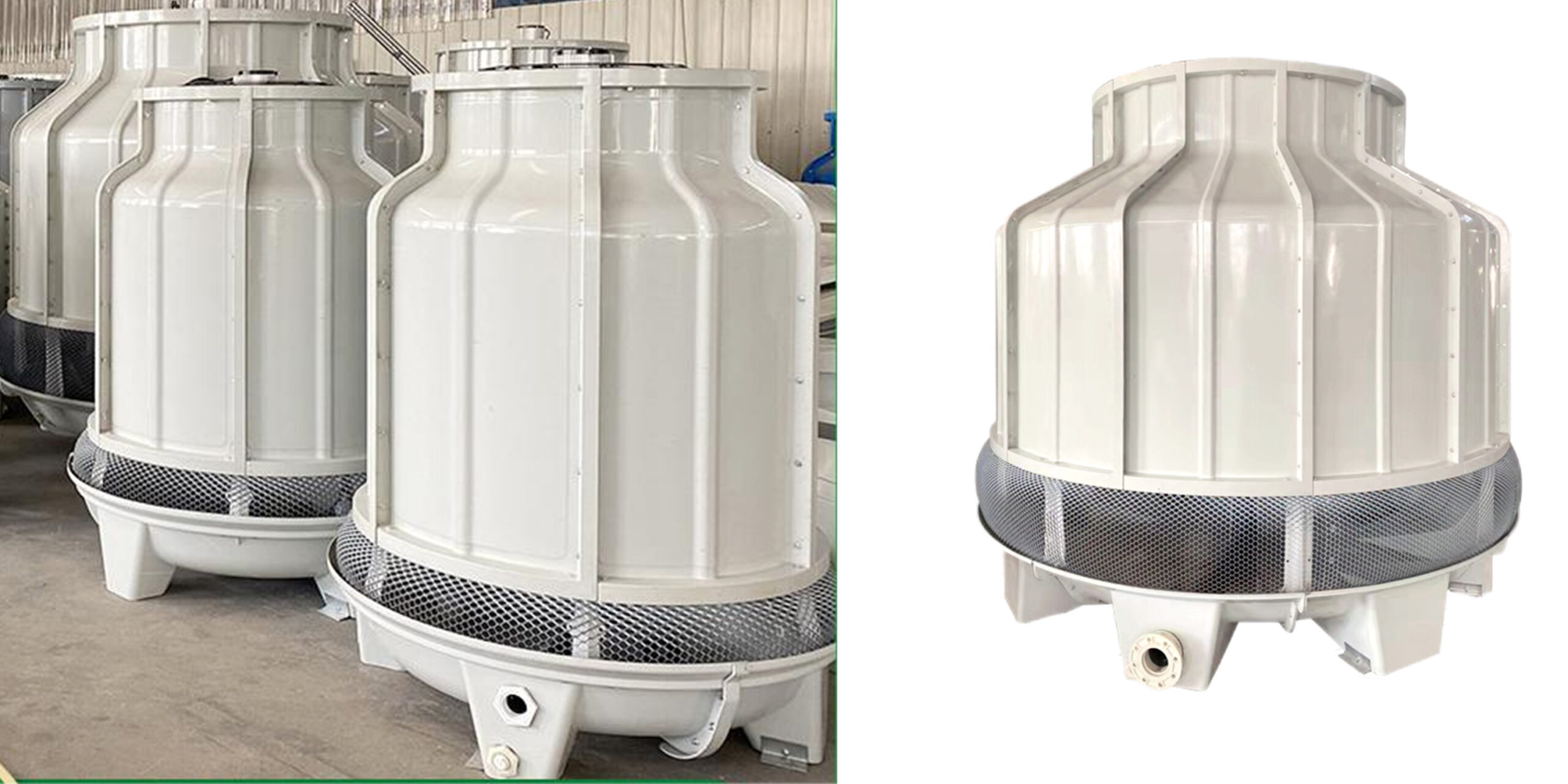

High temperature round cooling tower
5E high-temperature cooling tower is specialized in recycling high-temperature industrial cooling water above 60 ℃ to 100 ℃. The cooling material of this cooling tower is specially formed PP high-grade plastic, which can resist high temperatures and has excellent cooling efficiency.
Description
▲ All components are carefully designed and manufactured with light structure, easy installation, strong durability, and simple maintenance. It is the best high-temperature industrial cooling tower.
▲ Please refer to 5ET standard type for appearance size and standard specification, foundation, and size. The materials and accessories used in the 5ET-H high-temperature water tower are special functional accessories different from ordinary cooling towers and can be specified and applied according to the requirements.
Specifications
|
Model |
Flow(m3/h) |
Dimension(mm) | Motor (Kw)
|
Fan diameter
(mm) |
Air flow(cmm)
|
Water pressure (Kpa) | Weight(kg)
|
||||
| Max diameter–mm | Hight–mm | Net weight | Running weight | Net weight | Running weight | ||||||
| 5ET-8L | 6.2 | θ945 | 1380 | 0.18 | θ525 | 70 | 13 | 42 | 180 | 46 | 190 |
| 5ET-10L | 7.8 | θ945 | 1530 | 0.18 | 600 | 85 | 13 | 46 | 190 | 49 | 199 |
| 5ET-15L | 11.7 | θ1195 | 1415 | 0 37 | 600 | 140 | 13 | 54 | 290 | 60 | 298 |
| 5ET-20L | 15.6 | θ1195 | 1590 | 0.55 | 730 | 160 | 14 | 67 | 300 | 80 | 320 |
| 5ET-25L | 19.5 | θ1400 | 1820 | 0.75 | 730 | 200 | 16 | 98 | 500 | 110 | 540 |
| 5ET-30L | 23.4 | θ1650 | 1705 | 0.75 | 730 | 230 | 16 | 116 | 530 | 135 | 550 |
| 5ET-40L | 31.2 | θ1650 | 1775 | 1.5 | 890 | 280 | 16 | 130 | 550 | 150 | 590 |
| 5ET-50L | 39.2 | θ1830 | 1835 | 1.5 | 890 | 330 | 17 | 190 | 975 | 210 | 1050 |
| 5ET-60L | 46.6 | θ2145 | 1955 | 1.5 | 1150 | 420 | 17 | 240 | 1250 | 260 | 1280 |
| 5ET-80L | 62.6 | θ2145 | 2035 | 1.5 | 1150 | 450 | 18 | 260 | 1280 | 290 | 1410 |
| 5ET-I00L | 78.1 | θ2900 | 2370 | 2.2 | 1410 | 700 | 21 | 500 | 1690 | 550 | 1650 |
| 5ET-125L | 97.5 | θ2900 | 2555 | 2.2 | 1410 | 830 | 23 | 540 | 1640 | 580 | 1700 |
| 5ET-150L | 117 | θ2900 | 2555 | 2.2 | 1410 | 950 | 23 | 580 | 1680 | 600 | 1750 |
| 5ET-175L | 136.8 | θ3310 | 3165 | 4 | 1750 | 1150 | 30 | 860 | 1960 | 890 | 2010 |
| 5ET-200L | 156.2 | θ3310 | 3165 | 4 | 1750 | 1250 | 30 | 880 | 1980 | 920 | 2100 |
| 5ET-225L | 175.5 | θ4120 | 3580 | 5.5 | 2100 | 1500 | 33 | 1050 | 2770 | 1100 | 2870 |
| 5ET -250L | 195.1 | θ4120 | 3580 | 5.5 | 2100 | 1750 | 33 | 1080 | 2800 | 1200 | 2950 |
| 5ET-300L | 234 | θ4730 | 3680 | 7.5 | 2400 | 2000 | 34 | 1760 | 3930 | 1820 | 4050 |
| 5ET-350L | 273.2 | θ4730 | 3680 | 7.5 | 2400 | 2200 | 34 | 1800 | 3790 | 1890 | 4100 |
| 5ET-400L | 312.1 | θ5600 | 3840 | 11 | 2745 | 2400 | 36 | 2840 | 5740 | 2920 | 5900 |
| 5ET-500L | 392.4 | θ5600 | 3840 | 15 | 2745 | 2600 | 36 | 2900 | 5800 | 3010 | 5950 |
| 5ET-600L | 468 | θ6600 | 4470 | 15 | 3400 | 3750 | 42 | 3950 | 9350 | 4050 | 9450 |
| 5ET-700L | 547.2 | θ6600 | 4470 | 18.5 | 3400 | 3750 | 42 | 4050 | 9450 | 4180 | 9600 |
| 5E-800L | 626.4 | θ7600 | 4720 | 22 | 3700 | 5000 | 45 | 4700 | 11900 | 4900 | 12100 |
| 5ET-1000L | 781.2 | θ7600 | 4720 | 22 | 3700 | 5400 | 45 | 4900 | 12100 | 5000 | 12300 |
