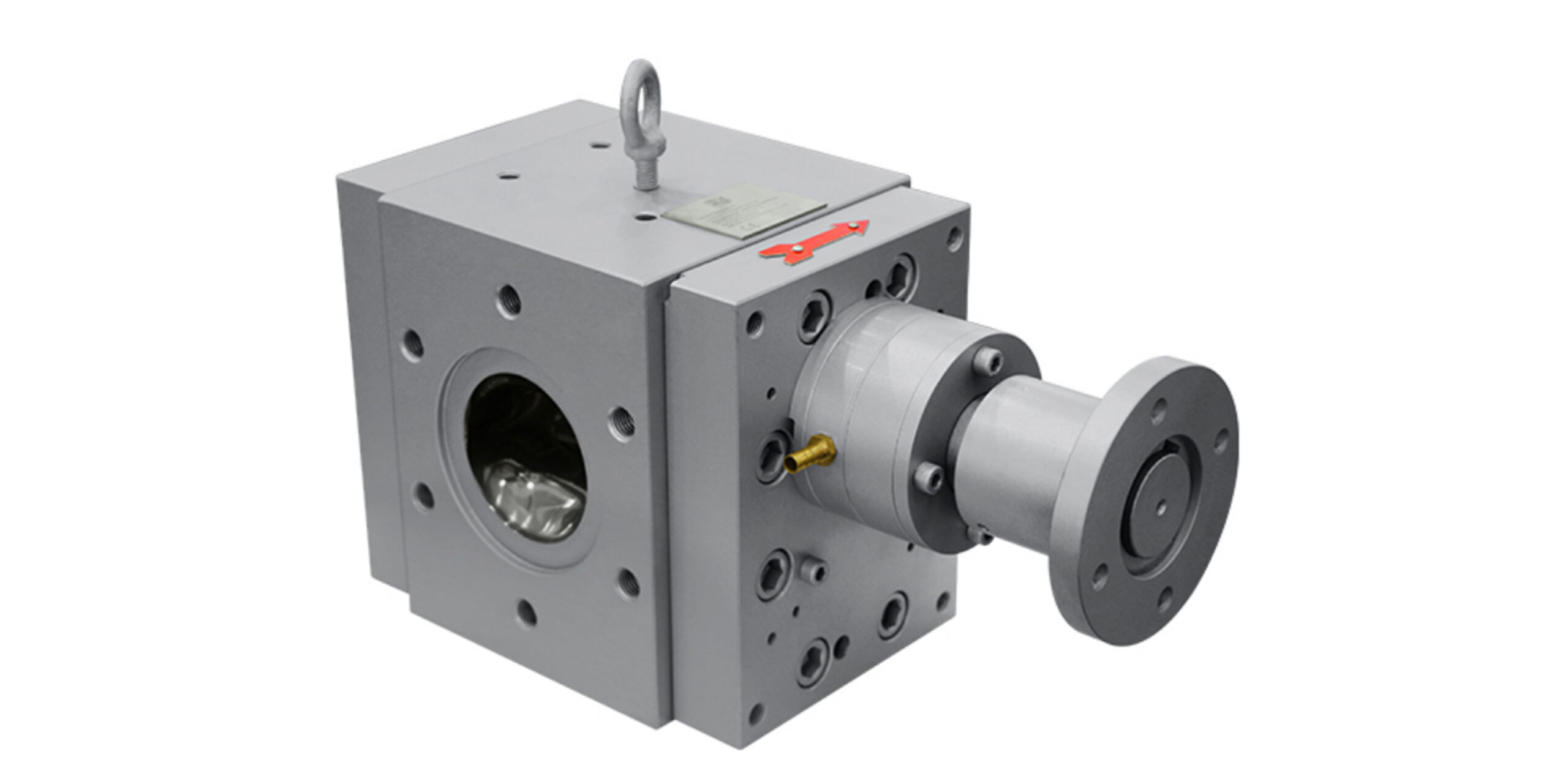

Melt metering pump
It is widely used for measuring and pressurizing high and low-viscosity materials such as PC, PMMA, ABS, PET, PVB, PS, PP, PE, etc. The shell is made of high-quality alloy steel, and the gear is made of hardened chrome steel or other high-quality metal materials, which has the advantages of high efficiency and leakproof
Description
A gear pump is installed on the extrusion production line, and the feeding process is optimized by accurately measuring the pressure in front of the pump and adjusting the speed of the extruder through PLC to keep the pressure stable and supply the material flow orderly.
Specifications
model | output volume(cm³/round | speed(rpm) | Output(Kg/h) | speed(rpm) | output(Kg/h) | speed(rpm) | output(Kg/h) | ||||||||||||
Min | Middle | Max | min | middle | max | min | middle | max | min | middle | max | min | middle | max | min | middle | max | ||
GD-E28 | 10 | 10 | 65 | 130 | 4.1 | 26.5 | 53.0 | 10 | 55 | 110 | 4.2 | 23 | 46.0 | 10 | 50 | 100 | 6.4 | 32.1 | 64.2 |
GD-E36 | 25.6 | 10 | 65 | 130 | 10.4 | 67.8 | 135.6 | 10 | 55 | 110 | 10.7 | 58.9 | 117.8 | 10 | 50 | 100 | 16.4 | 82.2 | 164.3 |
GD-E45 | 46.3 | 10 | 65 | 130 | 18.9 | 122.6 | 245.2 | 10 | 55 | 110 | 19.4 | 106.6 | 213.1 | 10 | 50 | 100 | 29.7 | 148.6 | 297.1 |
GD-E56 | 92.6 | 10 | 60 | 120 | 37.7 | 226.3 | 452.6 | 10 | 50 | 100 | 38.8 | 193.8 | 387.5 | 10 | 45 | 90 | 59.4 | 267.4 | 534.8 |
GD-E70 | 176 | 10 | 55 | 110 | 71.7 | 394.3 | 788.6 | 10 | 45 | 90 | 73.7 | 331.5 | 662.9 | 10 | 40 | 80 | 112.9 | 451.8 | 903.5 |
JC-90-E | 250 | 10 | 90 | 104 | 936 | 10 | 80 | 107 | 856 | 10 | 70 | 150 | 1050 | ||||||
GD-E90 | 371 | 10 | 50 | 100 | 151.1 | 755.6 | 1511.2 | 10 | 40 | 80 | 155.3 | 621.1 | 1242.1 | 10 | 33 | 65 | 238.1 | 785.6 | 1547.5 |
GD-E110 | 716 | 10 | 45 | 90 | 291.7 | 1312.5 | 2624.9 | 10 | 35 | 70 | 299.6 | 1048.8 | 2097.5 | 10 | 28 | 55 | 459.5 | 1286.5 | 2527.0 |
GD-E140 | 1482 | 10 | 40 | 80 | 603.7 | 2414.7 | 4829.4 | 10 | 30 | 60 | 620.2 | 1860.7 | 3721.3 | 10 | 23 | 45 | 951.0 | 2187.3 | 4279.5 |
