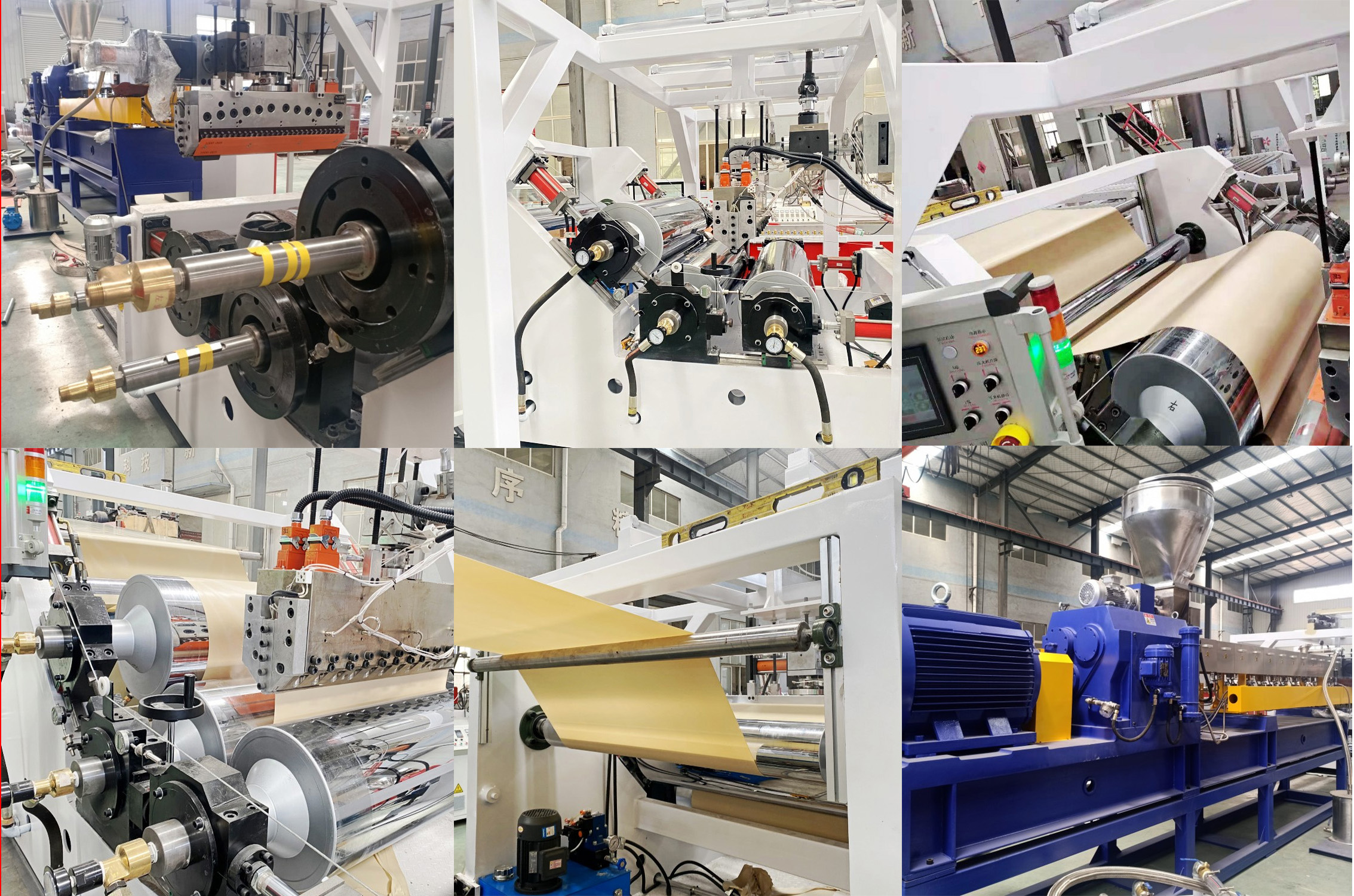

PLA Biodegradable Sheet Line
The production line is used for the production of PET and PLA sheets. It does not need a pre-crystallization drying system and is suitable for the production of secondary materials. It has the characteristics of high output, low energy consumption, and excellent plasticization
Description
1. The screw is a building block structure with multiple combinations and a wide range of applications. It is not only suitable for the production of PET but also suitable for PLA biodegradable materials and starch-based degradable materials
2. Double vacuum exhaust is adopted for the machine barrel to ensure full discharge of moisture
3. The extruder is equipped with a melt needle metering pump for constant pressure output, and the closed loop automatic control of pressure and speed is set
4. The whole machine is controlled by PLC to realize automatic control of parameter setting, data calculation and feedback, alarm, and other functions
Specifications
| Model | Applicable materials | Screw
Specification |
Screw Type | Sheet Thickness mm | Sheet Width mm | Max Extruding Capacity kg/h | Installed power kw |
| 5EJP75-1000 | PLA、PET | Φ72 | building block structure | 0.12-1.6 | ≤800 | 450-500 | 275 |
| 5EJP75H-1000 | PLA、PET | Φ72 | building block structure | 0.12-1.6 | ≤800 | 550-600 | 295 |
| 5EJP85-1000 | PLA、PET | Φ81.2 | building block structure | 0.12-1.6 | ≤800 | 650-750 | 350 |
| 5EJP95-1200 | PLA、PET | Φ93 | building block structure | 0.12-1.6 | ≤1000 | 900-1000 | 495 |
| 5EJP110-1200 | PLA、PET | Φ110 | building block structure | 0.12-1.6 | ≤1000 | 1300-1500 | 680 |
| 5EJP75-1000 | PLA、Starch based degradable material | Φ72 | building block structure | 0.30-2.0 | ≤800 | 300-400 | 275 |
| 5EJP95H/58-1200 | PLA、PET | Φ93 | building block structure | 0.12-1.6 | ≤1000 | 1000-1200 | 600 |
