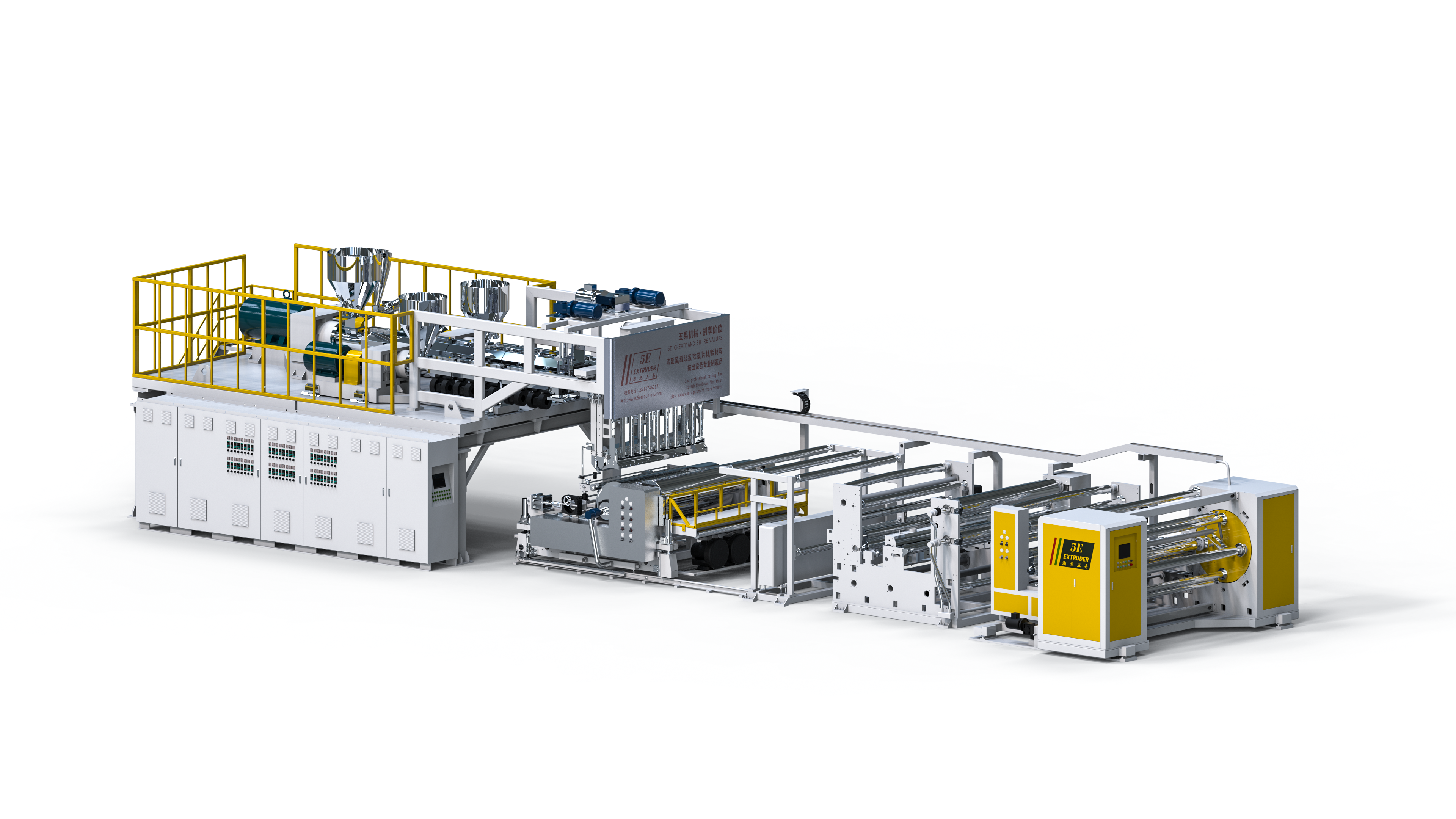

PP Battery Film Extrusion Line
1. Equipped with a positive pressure device to ensure the stability of the film
2. The film online recycling device greatly reduces production costs
3. Fully automatic central rolling, equipped with servo wheel controller, automatic roll changing and cutting, easy to operate
Description
pp battery film extrusion line is mainly used to produce single-layer, two-layer, or three-layer battery packaging film or separator for anode and cathode
Machine Features
1. The screw is designed with a special mixing function and high plasticizing capacity and is matched with a European static mixer to ensure good plasticization, good mixing effect, and high output
2. Fully automatic adjustment of die head and APC controlled automatic thickness gauge, online automatic detection of film thickness, automatic adjustment of die head, optional cooling forming roll imported from Europe, special spiral runner design, ensure film cooling and shaping effect at high speed
PP Film Features:
1. PP film has good acid and alkali resistance and puncture resistance
2. PP film has good flexibility, cold resistance, and ultrasonic fusion, especially suitable for acid and alkali environments of the battery
3. The strength of PP film is lower than that of the stretched film because it is an outward stretched film, but it has high strength after blending modification
PP Film Application:
1. PP film is printed and bagged, which is suitable for clothing, knitwear, flower packaging bags, document and photo album films, and food packaging
2. Potential use: PP film has a very broad application prospect in future industrial products due to its special acid and alkali resistance and good compatibility
Specifications
Model | 5EPP130-1600 | 5EPP80/130/80 -2000 | 5EPP80/135/80-2500 | 5EPP90/145/90-3000 | 5EPP100/150/100-3500 |
Film width | 1100mm | 1500mm | 2000mm | 2500mm | 3000mm |
Thickness of finished film (positive) | 0.08-0.20mm | 0.08-0.20mm | 0.08-0.20mm | 0.08-0.20mm | 0.08-0.20mm |
Max extruding capacity | 200-250 kg/h | 300-350 kg/h | 400-450 kg/h | 500-550 kg/h | 600-650 kg/h |
