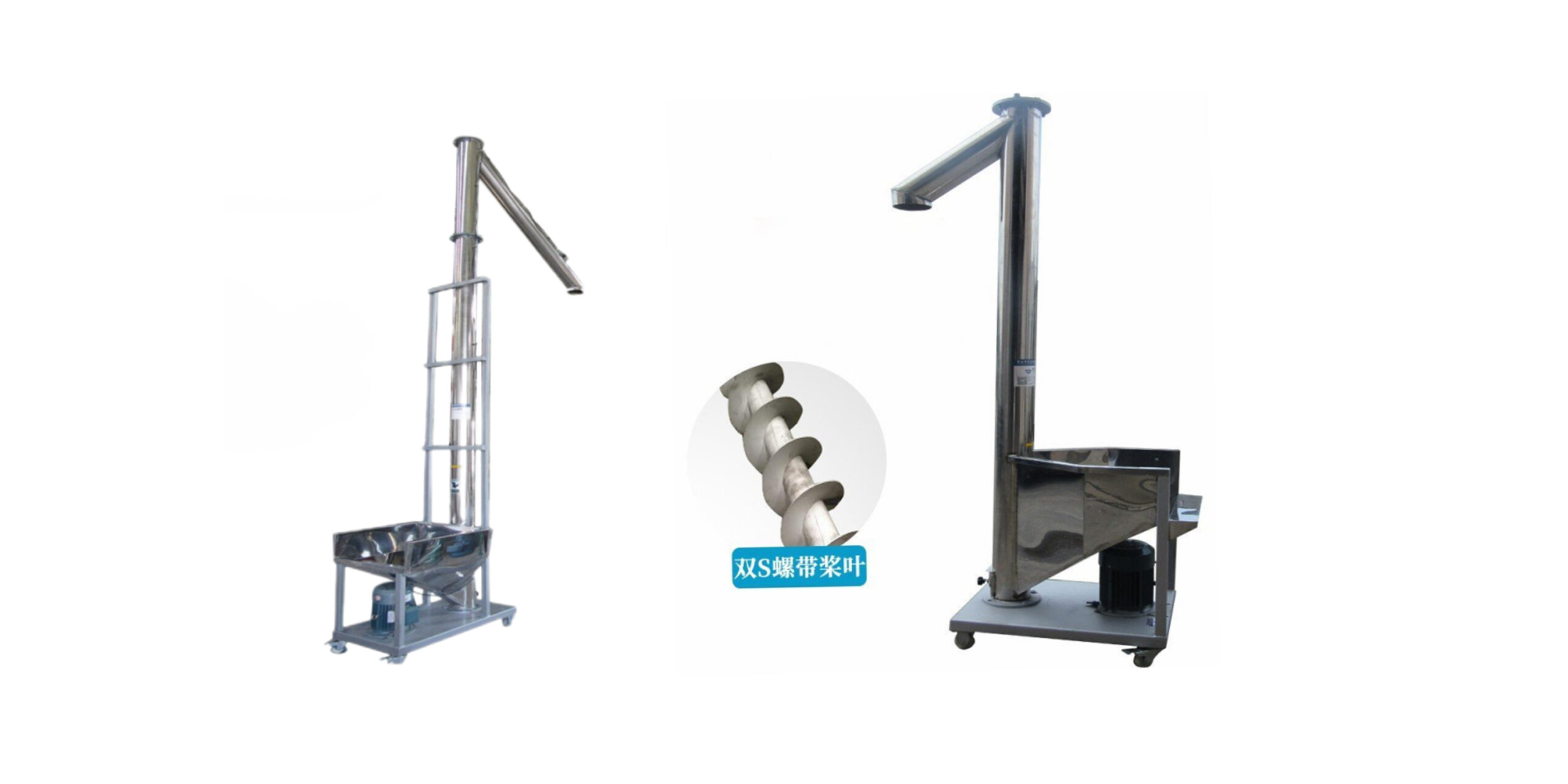

Screw feeder
Features of screw feeder:
Spindle speed: 400 rpm
Working capacity: 300KG – 3000KG/hour
The individual feeding height of this series of machines: 2-5m, and multiple machines can be applied for connection.
Description
Description of screw feeder:
A screw feeder is the most ideal feeding equipment in the market. It features fast conveying speed, less power consumption, and convenient operation
Usage and characteristics: It can be used with various types of extruders, high-speed mixers, plastic mixers, etc.
1. The plastic powder particles are automatically fed from low to high from the storage box by the screw (the height can be determined by the user)
2. The feeding is controlled by the material level device, which has the characteristics of automatic feeding, fast feeding, labor saving, safety, etc,
3. The pumping and feeding speed is 1-3 tons/hour to improve the working efficiency.
4. The motor is equipped with a protective switch, and the machine is designed with movable castors. The mouth bearing is used for durability, and Taiwan’s high-temperature sealing ring is used.
Specifications
| model | power | Pipe diameter mm | Feeding height m | Feeding quantity KG/H | Tank capacity KG | Box size mm | Weight KG |
| 5E-2K | 2.2 | Φ145 | 1. 5-3. 0 | 500-600 | 50 | 500*500*800 | 170 |
| 5E-3K | 3 | Φ159 | 3. 0-4. 0 | 600-800 | 100 | 800*9800*950 | 190 |
