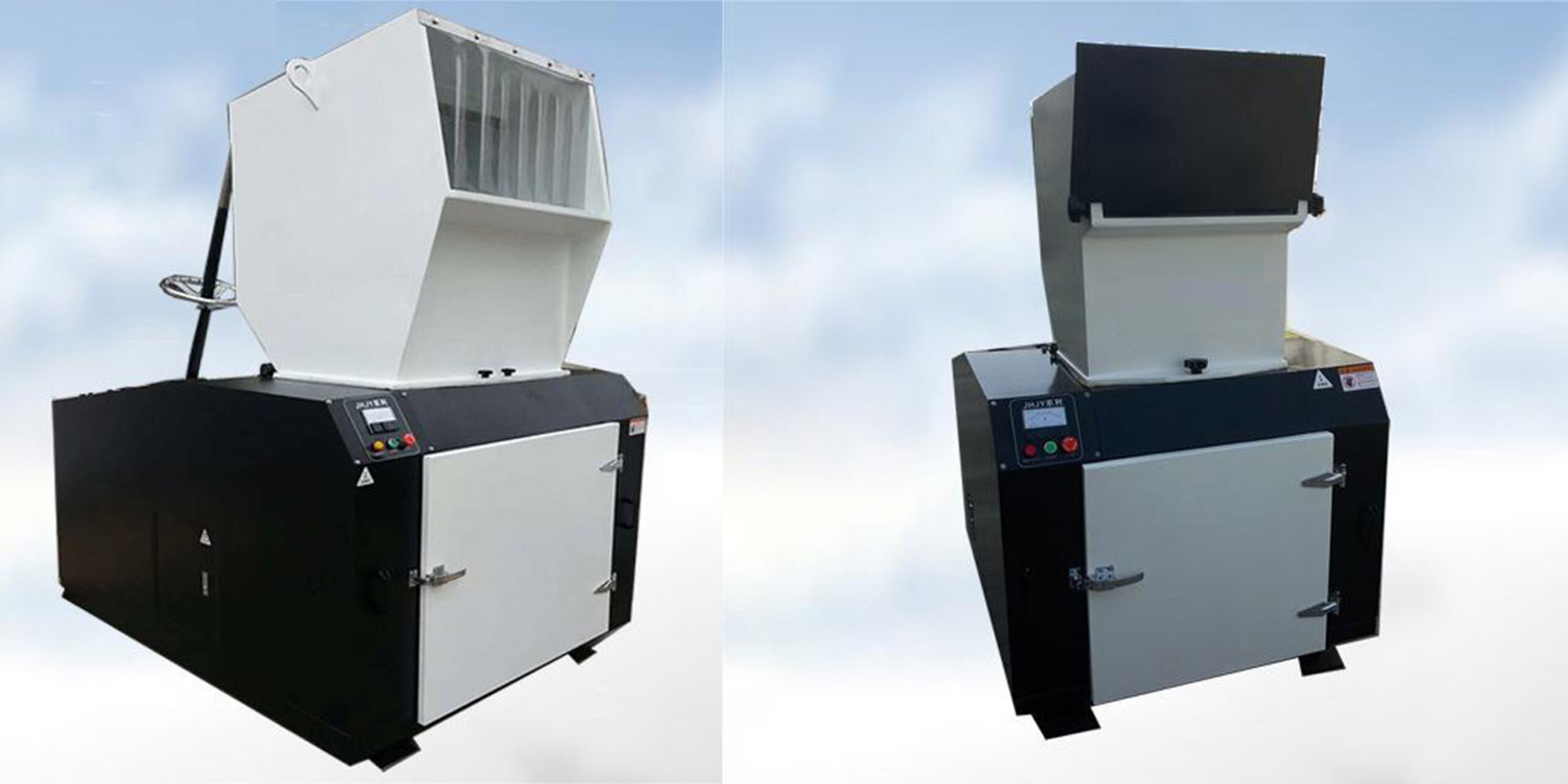

Silent plastic crushe

Features of silent plastic crusher
1. Double body, with sound insulation cotton inside, closed operation; All steel welded base, solid and durable.
2. Easy to disassemble design, easy to clean and maintain.
3. Imported steel tool, sharp blade, easy to replace, durable.
4. It is easy to smash all kinds of soft and hard plastics.



Add to Inquiry

Description

Application of silent plastic crusher:
▲ A plastic crusher is indispensable equipment for crushing and recycling plastics in the injection molding industry. It mainly crushes all kinds of soft and hard plastics, crushing blocky, spherical, sheet, and strip plastics into granules for recycling, which greatly improves the utilization rate of plastics. Low noise, environmental protection, and energy conservation.
▲ Discharge size: the crushed granular material can be determined according to the size of the screen mesh, and the standard screen mesh size is 8-10MM. The minimum non-standard screen diameter can be customized to be 4MM, and those above 4M can be customized as required.

Performance of silent plastic crusher:
▲ Silent crusher, fully enclosed silent design, noise within 1m around the machine is below 75db, and dust pollution is avoided
▲ With its beautiful and generous appearance, there are many styles to choose from
▲ Specially designed internal heat conduction system, which can discharge the heat generated by the motor out of the machine under the premise of maintaining full closure, so as to extend the service life of the motor
▲ Stainless steel storage box can be easily and quickly cleaned, and can also be equipped with a storage box with a suction port (stainless steel);
▲ Built in safety protection system, optional CE certified electrical appliances, fully in line with European safety standards;
▲ It is equipped with phase sequence controller to prevent adverse consequences caused by motor reverse rotation
▲ Power isolating switch is installed, which makes maintenance and operation more convenient and safe;
▲ Movable stainless steel hopper, handle switch and other humanized designs make operation easy

Specifications

Model Crushing chamber(mm) Crushing capacity (kg/h)



Fixed blades Rotary blades Power Outine

dimensions (cm)



Net weight (kg)
Kw HP
GJ230P 230 X 200 100-150 2 6 4 5 95X70X141 500
GJ400P 410X235 200-250 2 12 7.5 10 117X91X165 800
GJ500P 515X290 300-350 2 15 11 15 130X104X192 1100
GJ600P 610X320 350-450 4 18 15 20 136X114X214 1350
GJ800P 815X470 450-600 4 24 22 30 184X152 X 263 2500
GJ790P 810X550 600-800 4 27 37 50 205X170X314 3000
GJ1100P 1100X800 800-1000 4 12 75 100 217x205x370 4000
