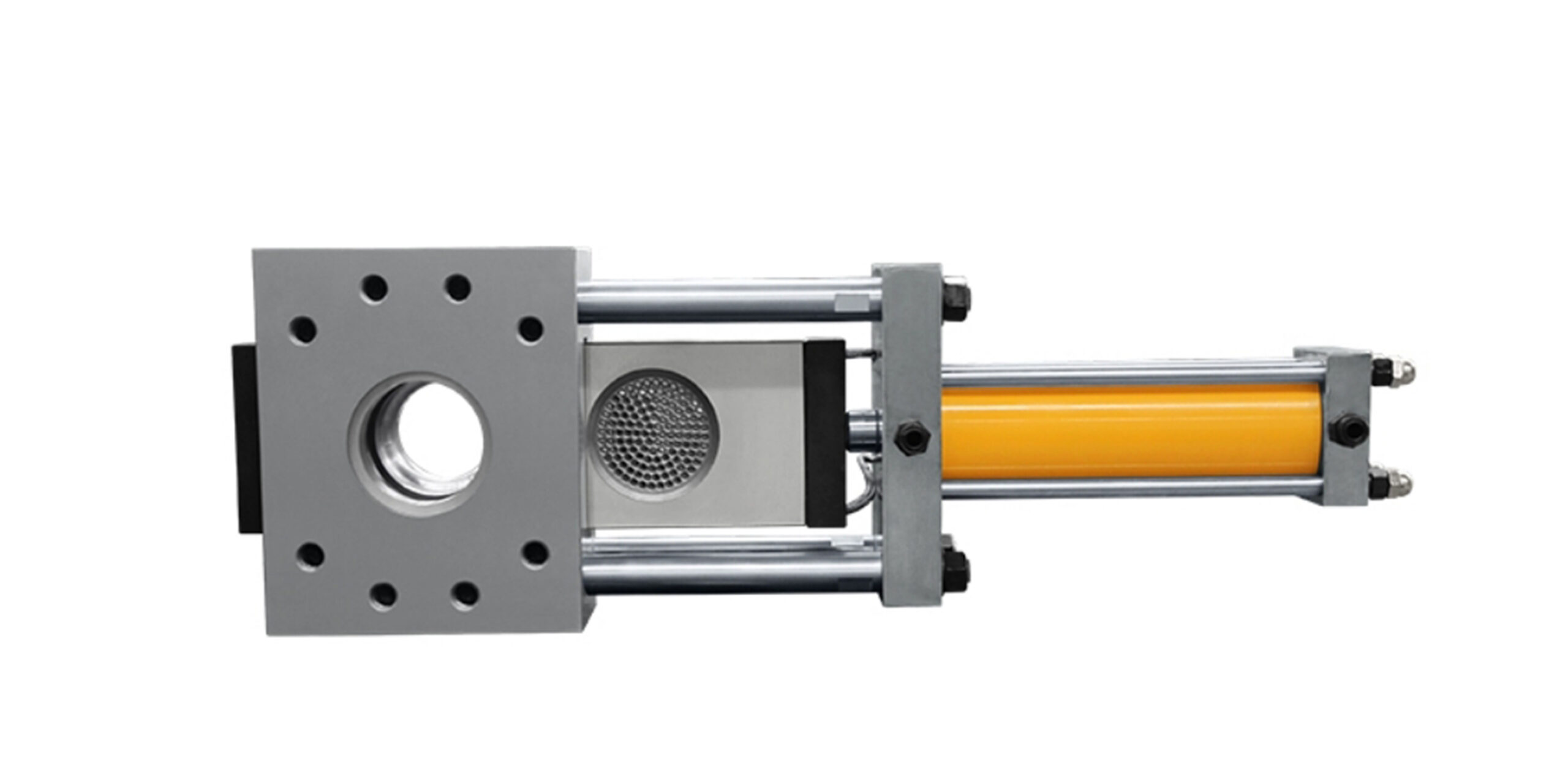

Single board double station screen changer

Single plate double station hydraulic screen changer is applicable to all thermoplastic plastics such as sheet, plate, pipe, covering film, blow film, wire, cable, profile, granulation, etc

Add to Inquiry

Description

Features of single board double station hydraulic screen changer:
1. The single plate double station hydraulic screen changer adopts an integral structure, featuring a small volume and short flow channel, and can be used with different standard extruders
2. The pressure-driven sealing technology is adopted, and the sealing gap can be automatically compensated to meet the requirements of high extrusion production of any polymer material, with no shutdown and no material leakage
3. The hydraulic pump station is equipped with a pressure storage device, and the double station’s fast net changing time is ≤ 2 seconds
4. The performance will not be affected when the pressure is 25-30Mpa and the temperature is up to 300 ℃
5. Filtering area ¢ 50 – ¢ 360mm optional

Specifications

Model

Output KG/H

Dimension mm Screen size Heater
L1 L2 L3 L4 Diameter mm Square measure cm³ Voltage V Heating power W
5E-SSP-A-100 130-350 110 815 185 280 Φ100 78 230/400 4500/6800
5E-SSP-A-120 200-550 130 880 205 320 Φ120 113 230/400 5200/7200
5E-SSP-A-150 350-800 150 990 235 360 Φ150 176 230/400 6500/8500
5E-SSP-A-180 450-1250 160 1035 245 360 Φ180 254 230/400 7600/9500
5E-SSP-A-200 550-1500 180 1155 280 420 Φ200 314 230/400 8500/11000
