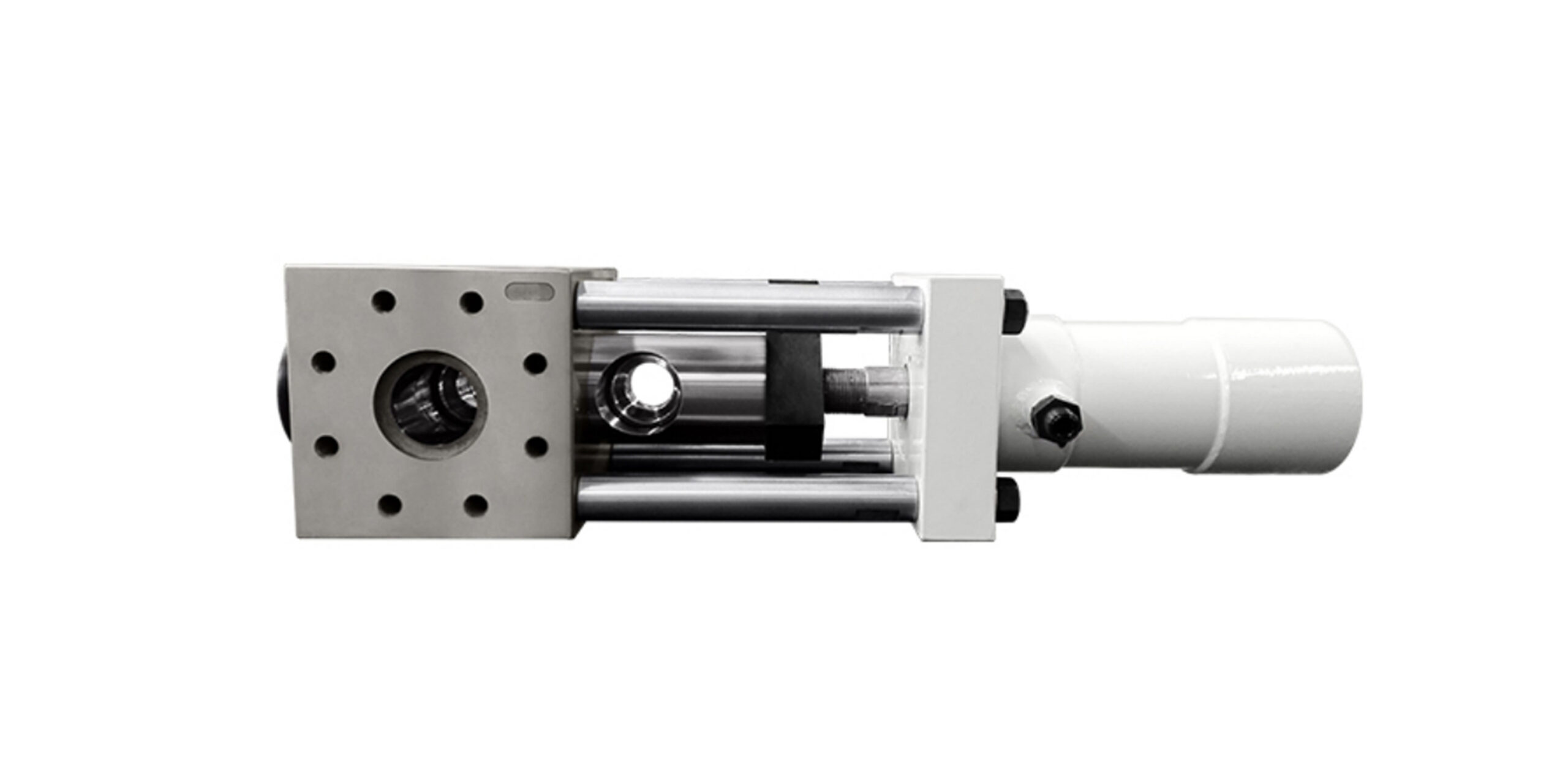

Single column double station hydraulic round-screen changer
The single-column hydraulic screen changer is suitable for the production of high-pressure products, especially for blow film, cast film, wire drawing, granulation, and almost all thermoplastics.
Description
The advantages of Single column double station hydraulic round-screen changer
1. High-performance steel and special processing and heat treatment process are adopted, specially designed for the high-pressure production process
2. Integral design with high wear resistance, high-pressure resistance, and high precision
3. The performance will not be affected when the pressure is 40-50Mpc and the temperature is about 300-400.
Specifications
Model | Output KG/H | Dimension mm | Screen size | Heater | |||||||
L1 | L2 | L3 | L4 | Diameter mm | Square measure cm³ | Quantity | Voltage V | Heating power W | |||
5E-SP-R-100 | 50-150 | 110 | 700 | 180 | 180 | Φ80 | 50 | 4 | 230/400 | 500/800 | |
5E-SP-R-120 | 100-260 | 110 | 730 | 210 | 210 | Φ100 | 78 | 4 | 230/400 | 600/1000 | |
5E-SP-R-145 | 200-380 | 125 | 800 | 240 | 240 | Φ125 | 123 | 4 | 230/400 | 700/1200 | |
5E-SP-R-170 | 290-600 | 135 | 860 | 260 | 260 | Φ150 | 177 | 4 | 230/400 | 1000/1600 | |
5E-SP-R-195 | 400-820 | 150 | 960 | 300 | 300 | Φ175 | 240 | 4 | 230/400 | 1600/2000 | |
5E-SP-R-220 | 600-1300 | 160 | 1150 | 330 | 330 | Φ200 | 314 | 8 | 230/400 | 1000/14000 | |
5E-SP-R-250 | 800-2000 | 180 | 1250 | 380 | 380 | Φ230 | 415 | 8 | 230/400 | 1600/2000 |
