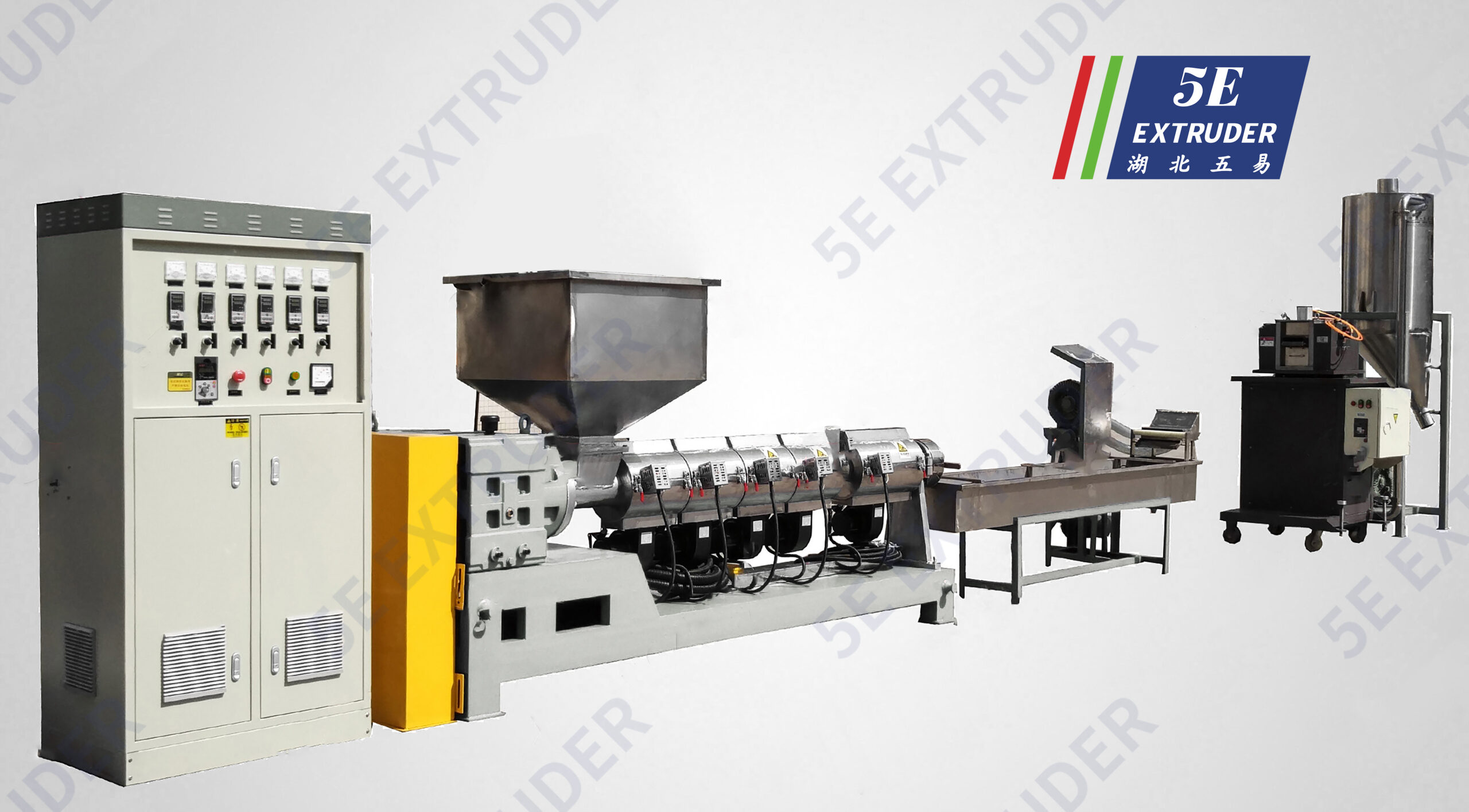

Single Screw Recycling Line
The production line adopts special screw designs and different configurations, which are suitable for the regeneration and color mixing granulation of various plastics such as PP, PE, PET, PS, ABS, PA, PVC, PC, POM, EVA, PMMA, etc.
Description
1. The reducer is designed with high torque to achieve low noise, smooth operation
2. The screw and barrel are especially surfaces treated, with the characteristics of wear resistance, good mixing effect, and high output
3. The design of a vacuum exhaust or natural exhaust port, It can remove water and waste gas in the production process, making the discharge more stable and the rubber denser, ensuring the good quality of the product.
Specifications
| Model | 5EZL120 | 5EZL130 | 5EZL140 | 5EZL150 | 5EZL180 |
| Screw diameter | 120mm | 130mm | 140mm | 150mm | 180mm |
| L/D Ratio | 25/36mm | 25/36mm | 25/36mm | 25/36mm | 25/36mm |
| Screw speed | 20-80 rpm | 20-80 rpm | 20-80 rpm | 20-80 rpm | 20-70 rpm |
| Max Extruding capcacity | 200-250 kg/h | 250-300 kg/h | 300-350 kg/h | 350-400 kg/h | 400-550 kg/h |
