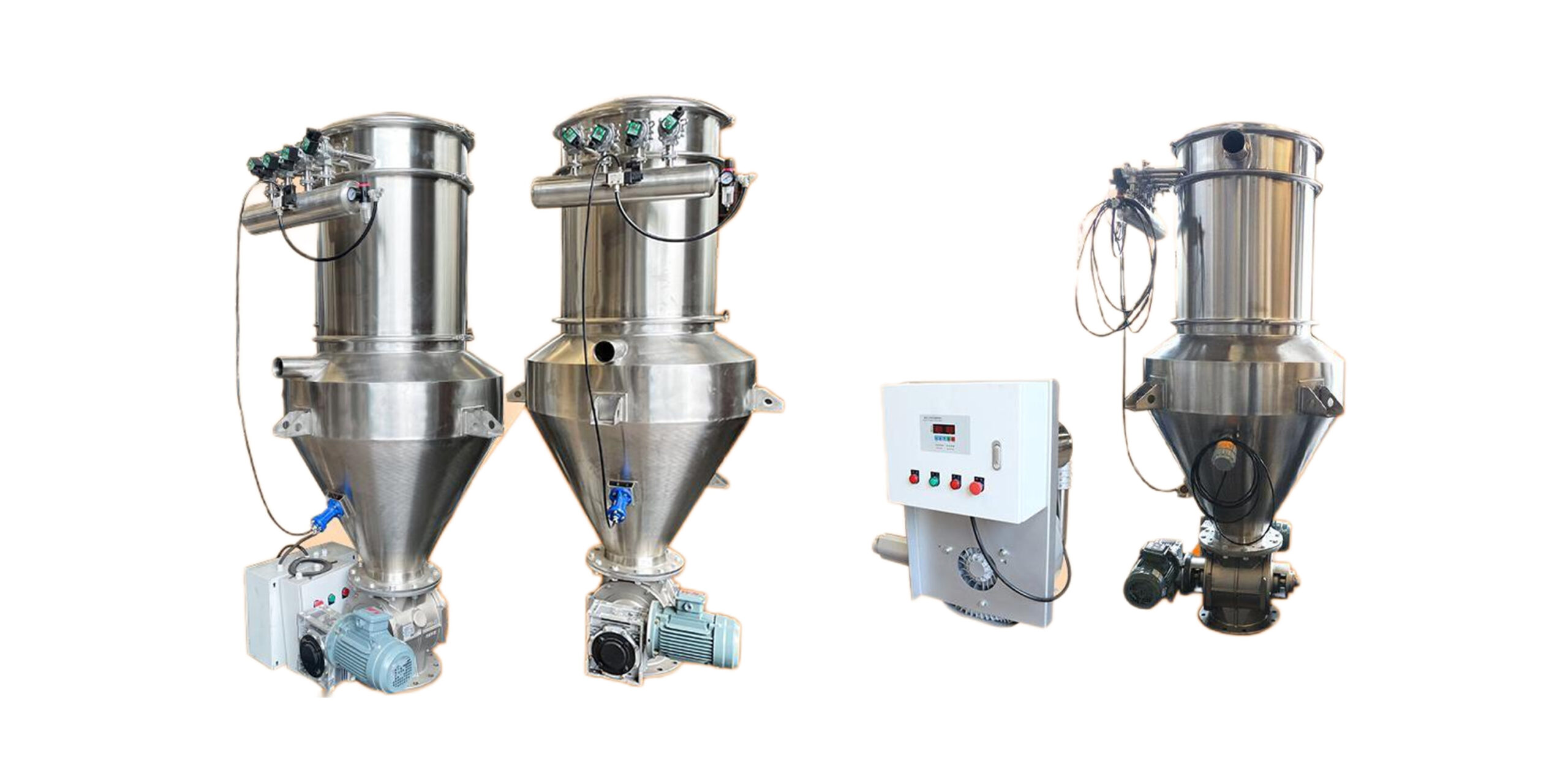

Single type suction machine
Features of 400G monomer automatic suction machine
▲ 400G adopts an inductive high-pressure fan, which has low noise, long suction, and service life
▲ Small in size and lightweight, can be directly placed on the dryer or other raw material containers to complete automatic feeding
▲ Microcomputer operation control program. Overload and shortage alarm,
▲ It is the first to use the wired controller to control, which can be set and controlled under the machine, convenient and fast
Description
The function of the automatic suction machine:
▲ The automatic suction machine is an automatic material conveying equipment, which uses the wind pressure generated by the super strong wind blower to transport raw materials
▲ Strong wind, high efficiency, small land occupation, space-saving, low cost, beautiful and practical;
▲ It is characterized by convenient installation, simple operation, strong long-distance transportation capacity, stable production, etc
▲ The suction machine is widely used in the injection molding industry, granulation industry, food, chemical industry, etc; It can be used with a dryer, dehumidifier, host hopper, and other related equipment, which is convenient for environmental protection.
Specifications
Mode | 5E-300G | 5E-400G | 5E-700G | 5E-800G | 5E-800G2 | 5E-900G | ||
motor
Power |
type | carbon brush | induction | carbon brush | induction | |||
specification | 1KW/220V | 0.75KW/380V | 1KW/220W | 1.1KW/380V | 2.2KW/380V | 2.2KW/380V | ||
Capacity (kg/t) | 290 | 350 | 300 | 300-400 | 350-450 | 300+300 | ||
Suction lift (m) | – | 4 | 4 | 4 | 5 | 5 | ||
Static pressure(mm / H20) | 1300 | 1400 | 1550 | 1800 | 2400 | 2400 | ||
Capacity (L) | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5+7.5 | ||
tube diameter (mm) | Φ38×3.5m/1pcs | Φ38x4m/1 pcs | Φ38x4m/2pcs | Φ38x4m /2pcs | Φ38x5m/2pcs | Φ38x4m /4pcs | ||
outline dimension mm |
Main-machine | / | / | 37*37*55 | 46*38*70 | 50X40X72 | 60*50*82 | |
storage barrel | 40*30*44 | 40*30*44 | 40*30*44 | 40*30*44 | 40*30*44 | 40*30*44 | ||
net weight (kg)
|
Main-machine | 11 | 32 | 18 | 46 | 58 | 85 | |
storage barrel
|
/ | / | 6 | 6 | 6 | 6 |
