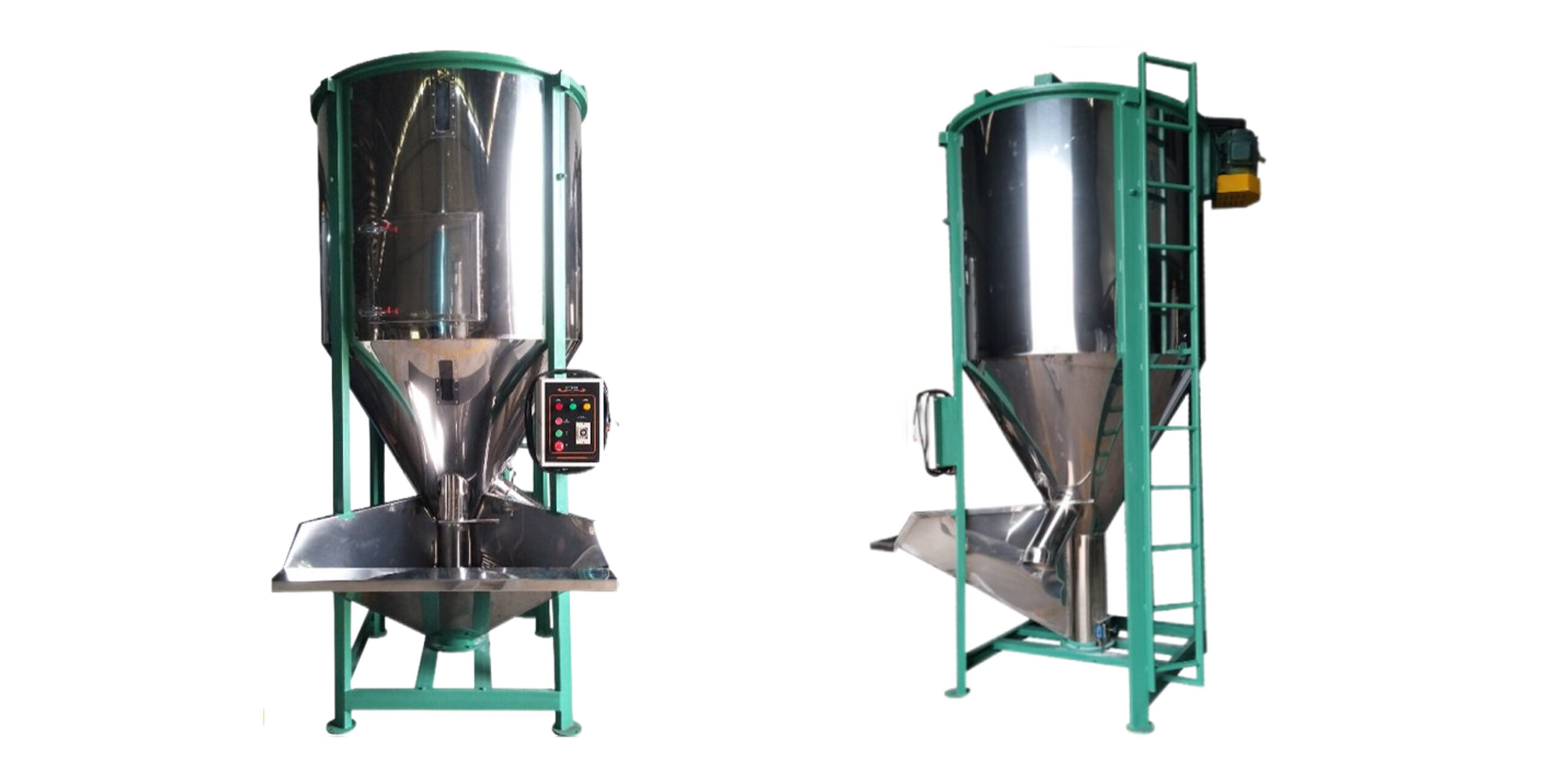

Vertical mixer
Working principle of vertical mixer:
The vertical mixer adopts the principle of spiral mixing. It conveys the materials put into the hopper to the upper end of the barrel through the spiral spindle, and then falls in an umbrella shape and continues to mix up and down circularly, so as to achieve uniform mixing
Functions of vertical mixer:
It has the functions of automatic operation timing, overload protection, feeding limit alarm, etc;
It also has the advantages of less land occupation, large capacity, low power consumption, labor saving, convenient operation, quick mixing and even weighing.
Description
Applicable industries:
It is mainly used in plastic dyeing, granulation, plastic granulation, color masterbatch manufacturing, plastic modification, recycling and processing of recycled materials, large injection molding, the chemical industry, food, and other industries
Performance characteristics of vertical mixer:
1. The bucket and spiral blade shall be made of stainless steel evenly to prevent corrosion and be easy to clean.
2. Low power consumption, large mixing, fast speed, even in 3-5 minutes.
3. The propeller blades are processed integrally after welding, with high concentricity, stable operation, and low noise.
4. The rack underframe is designed with a grease-filling device to make the bearing durable.
5. The frame is made of a frame design, which is firm and durable.
6. Sealed mixing, uniform mixing, no leakage.
7. Vertical shape operation, small land occupation, and space-saving.
8. Check the attached optional devices:
9. Equipped with an electric drying device
10. Equipped with automatic feeding device of screw feeder
Specifications
| Vertical mixer technical parameters： | |||||||
| Model | Power | Capacity（KG） | volume（nf） | Voltage＜V） | Speed（r/min） | Barrel size | |
| Model | KW | HP | Caoacuty | Volume | VOltage | Tachometer | The sixe of the barrel body (MM) |
| 5EQF-300 | 2.2 | 3 | 300 | 0.6 | 380 | 300 | Φ960*2100 |
| 5E QF-500 | 3 | 4 | 500 | 1 | 380 | 300 | Φ1250*2350 |
| 5EQF-1000 | 4 | 5 | 1000 | 2 | 380 | 300 | Φ1500*2800 |
| 5EQF-2000 | 5.5 | 7.5 | 2000 | 4 | 380 | 300 | Φ1850*3300 |
| 5EQF-3000 | 5.5 | 7.5 | 3000 | 6 | 380 | 300 | Φ2100*3700 |
| 5EQF-5000 | 7.5 | 10 | 5000 | 10 | 380 | 300 | Φ2500*4350 |
| 5EQF-10000 | 11 | 15 | 10000 | 20 | 380 | 300 | Φ3000*5500 |
| 5EQF-12000 | 11 | 15 | 12000 | 24 | 380 | 300 | Φ3100*5600 |
| 5EQF-15000 | 15 | 20 | 10000 | 30 | 380 | 300 | Φ 3300*5900 |
