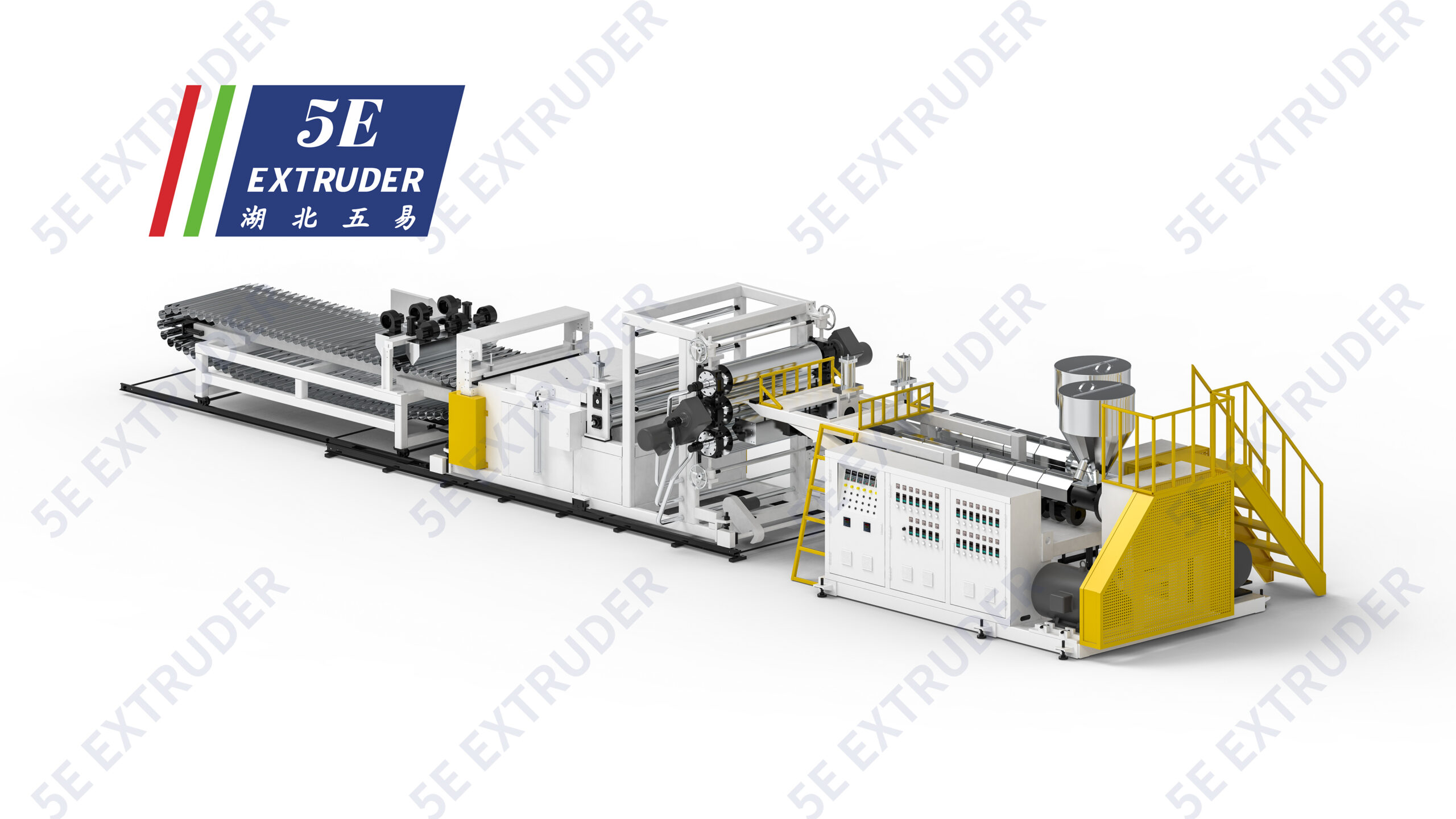

Water Drainage Sheet Line
For the production of waterproof coiled materials of PE, PVC, TPO, and other materials, roof waterproofing of industrial and civil buildings
Description
The water drainage sheet extrusion line is suitable for the production of waterproof coiled materials of PE, PVC, TPO, and other materials, roof waterproofing of industrial and civil buildings, including planting roofs, flat roofs, sloping roofs, and underground waterproofing of buildings, including reservoirs, dikes, pools, tunnels, grain depots, civil air defense projects, garbage landfills, artificial lakes, etc.
Specifications
| Model | 5EPX120-1200 | 5EPX135-2600 | 5EPX150/105-3600 | 5EPX110/160-4600 | 5EPX160/250-9100 |
| Sheet Width | 1000mm | 2000mm | 3000mm | 4000mm | 8500mm |
| Sheet thickness | 0.5-3.0mm | 0.5-3.0mm | 0.5-3.0mm | 0.5-3.0mm | 0.5-3.0mm |
| Max extruding capacity | 250-300 kg/h | 350-400 kg/h | 450-500 kg/h | 600-650 kg/h | 1400-1450 kg/h |
